CE 270KW Class F 3000 Rpm AC Servo Motors

Name: CE 270KW Class F 3000 Rpm AC Servo Motors
Brand: SEBOS
Price: 1 USD

Brand Name : SEBOS

Model Number : SMZ series

Certification : CE

Place of Origin : CHINA

MOQ : 1

Price : Negotiable

Payment Terms : 100%T/T before shipment

Supply Ability : 200 sets per month

Delivery Time : 10 days

Packaging Details : Wooden case

Servo motor power : 8kw-274kw

Rated torque : 30Nm-1280Nm

Rated speed : 1000-3000 rpm

Voltage range : 380-660V

Winding : Class H

Motor : Class F

Cooling : Servo fan

Protection : IP 54

OEM : Available

Contact Now

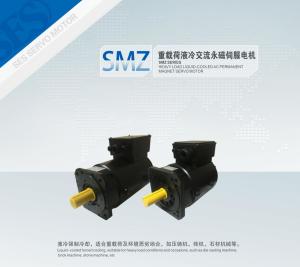

1. SMZ series model description

CE 270KW Class F 3000 Rpm AC Servo Motors

2. Servo motor performance introduction

2.1) Small moment of inertia, fast dynamic response
2.2) Wide speed range, strong overload capacity
2.3) Small volume, light weight, high power density
2.4) Good linearity, small torque ripple
2.5) Balance of high precision, stable operation
2.6) Low loss, high efficiency, energy saving effect is obvious
2.7) Adopt high quality axial model fan having good cooling effect.
2.8) Three-core thermal resistance is good for Over-temperature protection of motor.

3. Specification

Motor model	Unit	SMZ063			SMZ084			SMZ105			SMZ126			SMZ147			SMZ168			SMZ147
Rated torque	Nm	63			84			105			126			147			168			147
Rated speed	RPM	1500	1700	2000	1500	1700	2000	1500	1700	2000	1500	1700	2000	1500	1700	2000	1500	1700	2000	1500	1700	2000
Max speed	RPM	2009	2232	2511	1883	2153	2511	2009	2192	2411	2009	2232	2511	1914	2153	2460	1883	2153	2511	1914	2232	2679
Rated power	KW	9.9	11.2	13.2	13.2	15	17.6	16.5	18.7	22	19.8	22.4	26.4	23.1	26.2	30.8	26.4	29.9	35.2	29.7	33.6	39.6
Rated current	A	22.4	24.8	28	28	32.1	37.3	28	32.1	37.3	44.8	49.7	56	49.8	56.1	64.1	56.1	64.1	74.8	64.1	74.6	89.7
Rated voltage	V	380	380	380	380	380	380	380	380	380	380	380	380	380	380	380	380	380	380	380	380	380
EMF constant	V/1000RPM	182	164	145	194	170	145	182	167	151	182	164	145	191	170	148	194	170	145	191	164	136
Torque constant	KT	3.15	3.15	2.52	3.36	2.93	2.51	3.14	3.14	2.62	3.14	3.15	2.51	2.93	2.93	2.2	3.36	2.94	2.52	2.95	2.53	2.11
Two phase inductance	MH	8	6.5	5.1	6.9	5.2	3.9	4.8	3.1	3.3	4	3.3	2.3	3.8	3	2.3	3.4	2.6	1.9	3	2.2	1.5
Motor inertia	Kg.m²	82			107			129			153			177			201			225
Insulation		Winding: CLASS H; Motor: CLASS B
Environmental requirements		Working temperature: 0-55℃; Humidity « 90%
Cooling		Winding: CLASS H; Motor: CLASS F
Protection		Liquid cooling
		IP54

Motor model	Unit	SMZ160			SMZ214			SMZ267			SMZ321			SMZ374			SMZ428			SMZ481
Rated torque	Nm	160			214			267			321			374			428			481
Rated speed	RPM	1500	1700	2000	1500	1700	2000	1500	1700	2000	1500	1700	2000	1500	1700	2000	1500	1700	2000	1500	1700	2000
Max speed	RPM	1998	2082	2497	1873	2082	2341	1873	2141	2497	1921	2082	2497	1946	2141	2676	1873	2082	2341	1850	2082	2739
Rated power	KW	25.2	28.6	33.6	33.6	38.1	44.8	42	47.6	56	50.4	57.1	67.2	58.8	66.7	78.4	67.2	76.2	89.6	75.6	85.7	100.8
Rated current	A	56.8	59.3	71	71	78.9	88.7	88.8	101.5	118.3	109.2	118.3	142	129.1	142.2	177.5	142	157.9	177.5	157.8	177.6	202.9
Rated voltage	V	380	380	380	380	380	380	380	380	380	380	380	380	380	380	380	380	380	380	380	380	380
EMF constant	V/1000RPM	182.67	175.35	146.15	194.87	175.35	155.9	194.87	170.47	146.15	190	175.35	146.15	187.53	170.47	136.4	194.87	175.35	155.9	197.27	175.35	153.45
Torque constant	KT	2.826	2.707	2.261	3.014	2.712	2.413	3.012	2.635	2.261	2.94	2.713	2.261	2.901	2.634	2.11	3.014	2.711	2.411	3.051	2.711	2.373
Two phase inductance	MH	0.53	0.49	0.34	0.45	0.36	0.29	0.36	0.28	0.2	0.29	0.24	0.17	0.24	0.2	0.13	0.23	0.18	0.14	0.21	0.16	0.12
Motor inertia	Kg.m²	439			575			710			846			981			1117			1253
Insulation		Winding: CLASS H; Motor: CLASS B
Environmental requirements		Working temperature: 0-55℃; Humidity « 90%
Cooling		Winding: CLASS H; Motor: CLASS F
Protection		Liquid cooling
		IP54

4. Competence platform

CE 270KW Class F 3000 Rpm AC Servo Motors
